Black Oxide
At Placage Boucherville we offer black oxide treatment on steel or stainless steel parts. This treatment allows the part to increase its resistance to corrosion, improve the appearance of its surface and minimize light reflection without altering its dimensions.
During the treatment, the part is first cleaned to remove grease, dirt, and oils from its surface by being soaked in a tank for this purpose. The room is then immersed in another pool containing high-intensity heated chemicals. When the part is ready to be removed from this tank, it is then impregnated with oil, which allows it to obtain an optimal resistance to corrosion.
Technical Specifications
Dimensions of black oxide tanks:
- 18” x 34” x 15” deep / steel and stainless steel
- 36” x 48” x 15” deep / steel
- 16” x 72” x 15” deep / steel
Types
Orders ready in less than 48h Order now!
The steps of our black oxide process
We can provide a compliance letter guaranteeing the standards and quality of our products
•
Step 1
Cleaning
The parts are first cleaned to remove grease, dirt and oils from their surfaces by being soaked in a basin made for this purpose.
•
Step 2
Treatment
The parts are then immersed in another basin containing chemicals heated at high intensity.
•
Step 3
Oiling
When the treatment of the part is finished, it is then impregnated with oil which allows it to obtain optimal resistance to corrosion.
ORDERS READY IN 48H !
Fast processing and delivery
For your small or large projects, we guarantee your SATISFACTION thanks to our expertise, our superior quality and our unbeatable service. This is our promise, and has been for over 20 years.

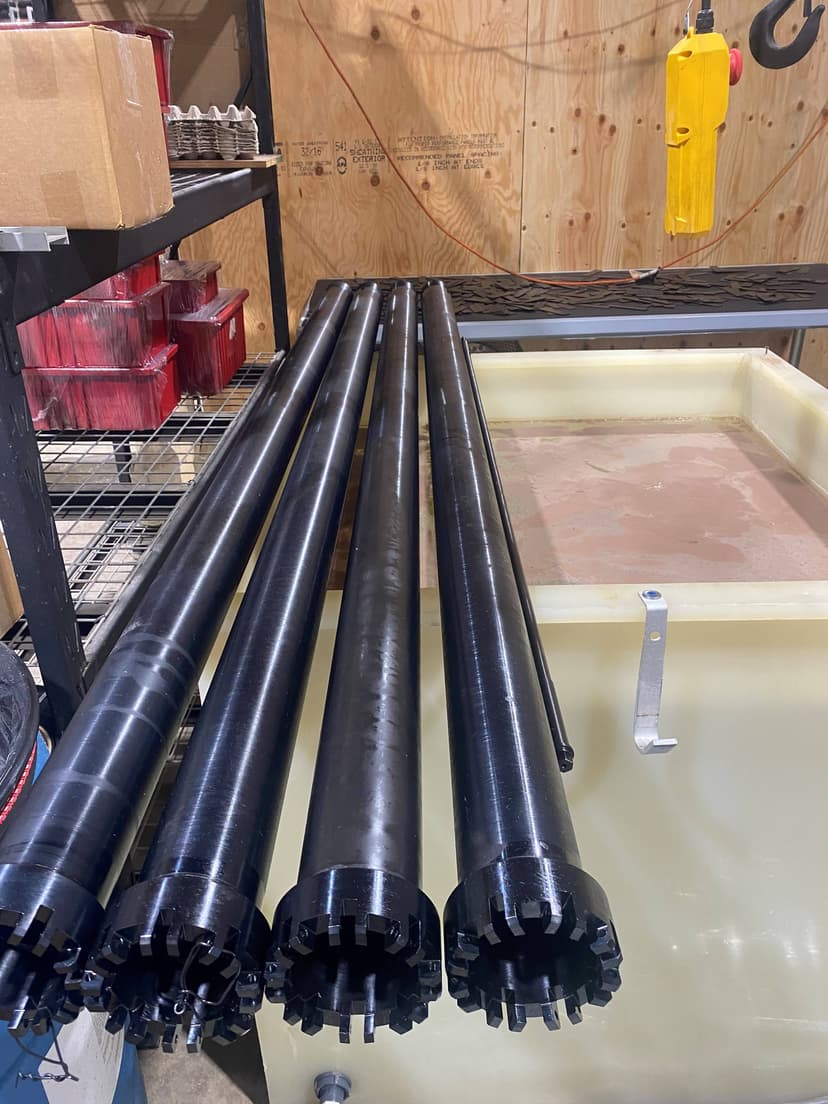

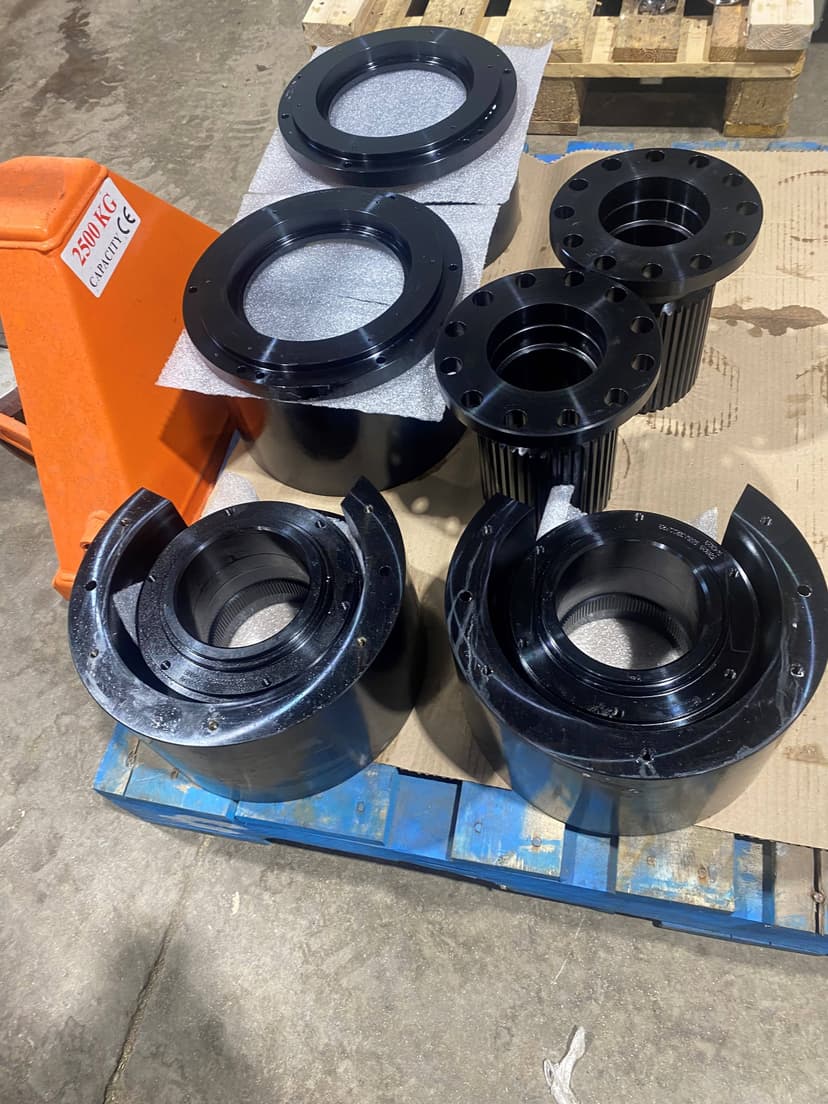

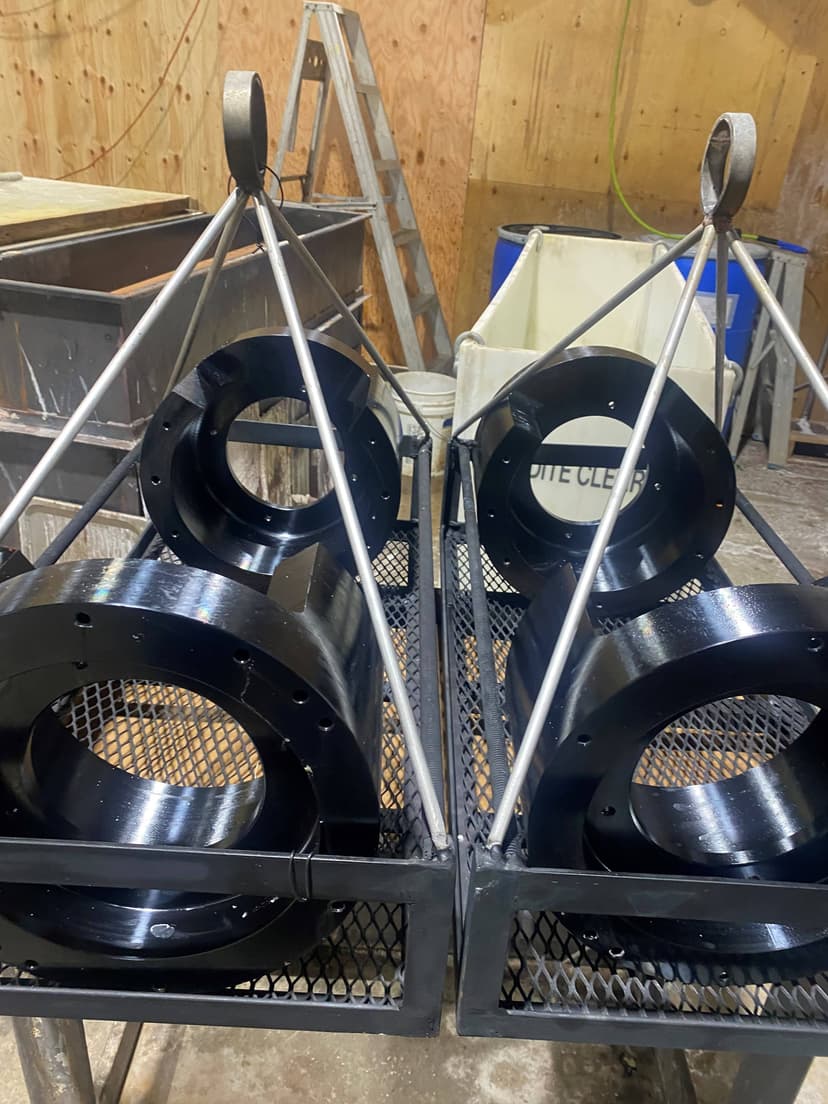

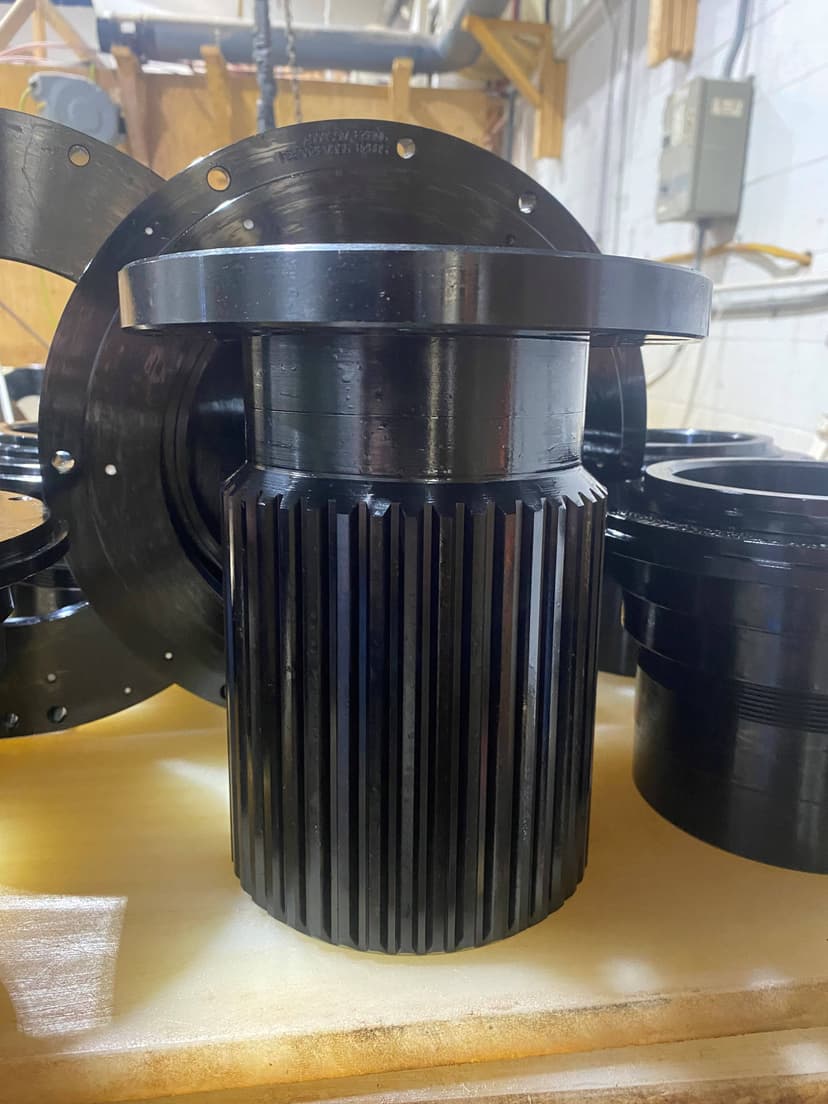

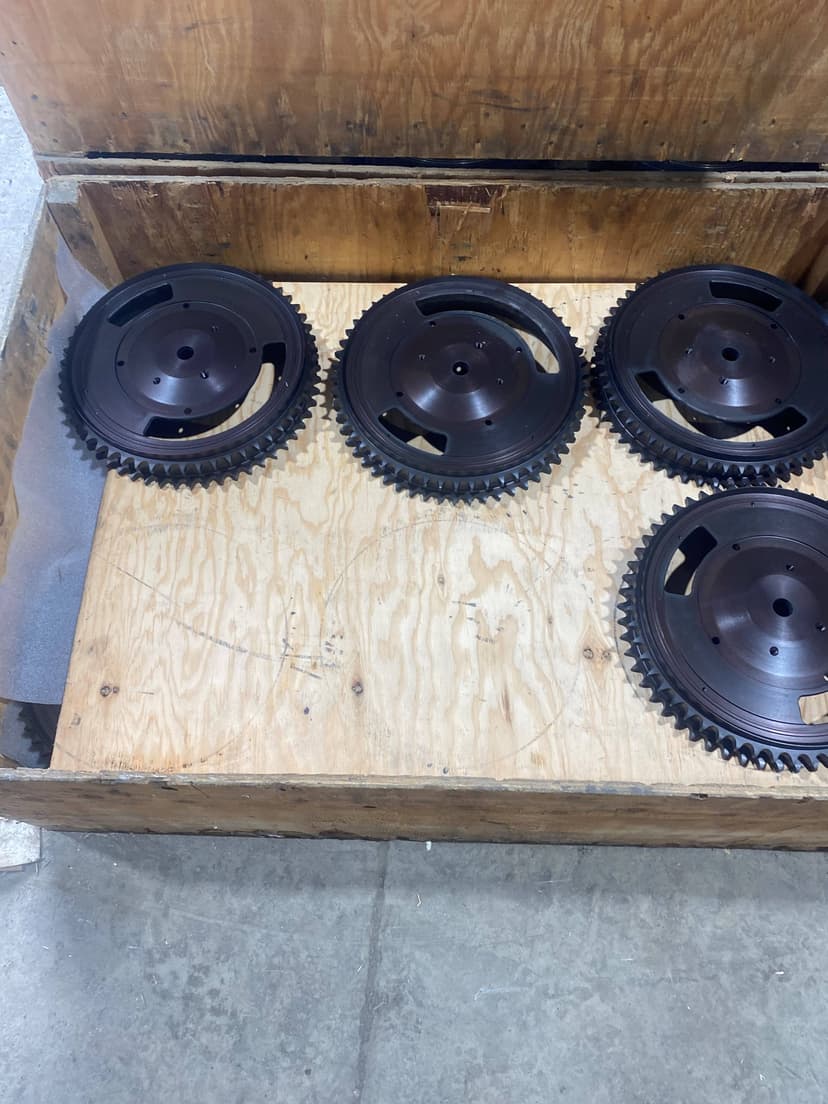

Our realisations
Contact Us
For a quote submission, please send us the information bellow in the following form or straight to the e-mail address info@placageboucherville.com :
- Type of plating (Anodizing, Passivation, Iridite, Black Oxide)
- Color (If anodizing)
- Material of the part
- Technical drawing of the part
- Quantity
- Telephone
- +1 (450) 641-8229
